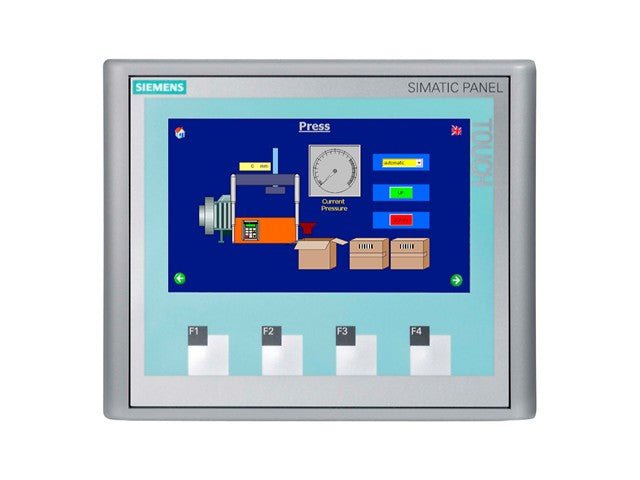

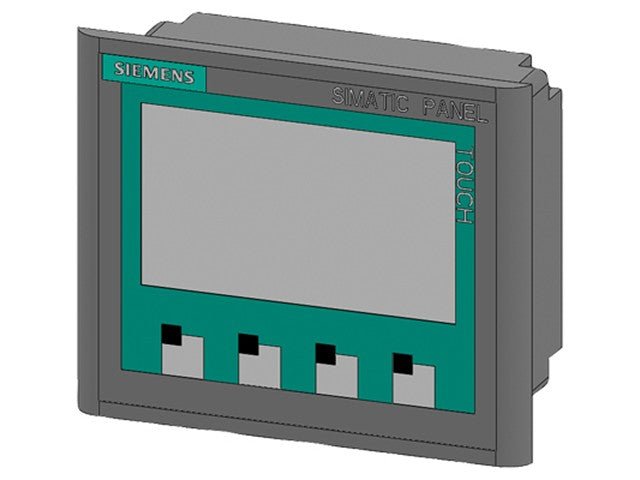

SIMATIC TP 177B 4" Color PN/DP TFT 256 Color-16: 9-Display, MPI/PROFIBUS DP Protocol RS 485/RS 422/USB Interface Ethernet 10/100 Interface Printer Interface
SIMATIC TP 177B 4" Color PN/DP TFT 256 Color-16: 9-Display
Specifications
- Product Name: SIMATIC TP177B 4″ Color Operator Panel
- Model Number: 6AV6642-0BD01-3AX0
- Product Family: SIMATIC HMI – TP170 Series
- Display Type: Color TFT LCD
- Screen Size: 4.3 inch diagonal
- Aspect Ratio: 16:9
- Resolution: 480 × 272 pixels
- Display Colors: 256 colors (palette)
- Touch/Operation: Touchscreen with membrane keys
- Supply Voltage: 24 V DC
- Power Consumption: Approx. 0.2 A
- Communication Interfaces: Ethernet 10/100, MPI/PROFIBUS-DP (RS485/RS422), optional RS232, USB port
- Industrial Protocols: MPI, PROFIBUS-DP, PROFINET/Ethernet (depending on configuration)
- Memory: Onboard memory for variables and recipes (~2048 kbyte)
- Function Keys: 4 membrane function keys
- Expansion: Slot for MMC memory card
- Protection Class: IP65 front when installed (rear IP20)
- Mounting Position: Vertical panel mount
- Operating Temperature: Typical 0 °C to +50 °C
- Humidity: Up to ~90% non-condensing
- Weight : Approx. 0.5–0.62 kg
- Dimensions: Approx. 140 × 116 × 48 mm
- Status: Discontinued / phase-out product
- Typical Application: Machine visualization and control in industrial automation
