Product Details

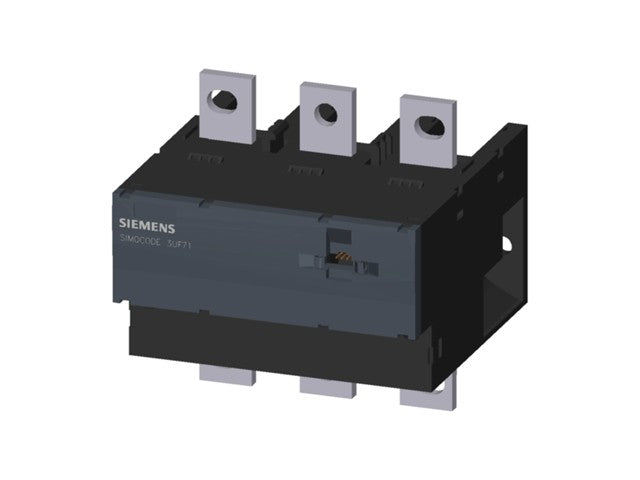

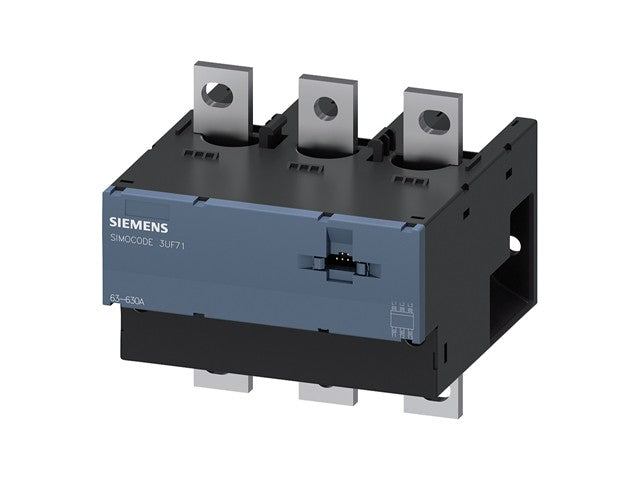

SIMOCODE Current Measuring Module, Set Current 63...630 A Overall Width 145 MM, Busbar Connection
SIMOCODE Current Measuring Module
Specifications
- Product Name / Type: Current Measuring Module (SIRIUS / SIMOCODE pro)
- Article Number (MPN): 3UF7104-1BA00-0
- General Function: Current measurement module
- Set / Adjustable Current Range: 63 A – 630 A
- Rated Supply Voltage (Ue): 110 – 690 V AC
- Operating Frequency: 50 – 60 Hz
- Connection Type / Mounting: Busbar connection / Rail mount
- Protection Class: IP00
- Insulation Voltage (Pollution degree 3): 690 V
- Surge Voltage Resistance: 8 000 V
- Shock Resistance: 15 g/11 ms (IEC 60068-2-27)
- Vibration Resistance: 1–6 Hz/15 mm; 6–500 Hz/2 g
- Measurement Type: Current only (no voltage/frequency/energy measurement)
- Thermistor Input: Not supported
- Number of Outputs: 0 (no auxiliary switching contacts)
- Recommended Mounting Position: Any
- Cabinet / Enclosure Requirements: Requires enclosure greater than IP00 rating
- Net Weight: ~1.78 kg
- Overall Width: 145 mm

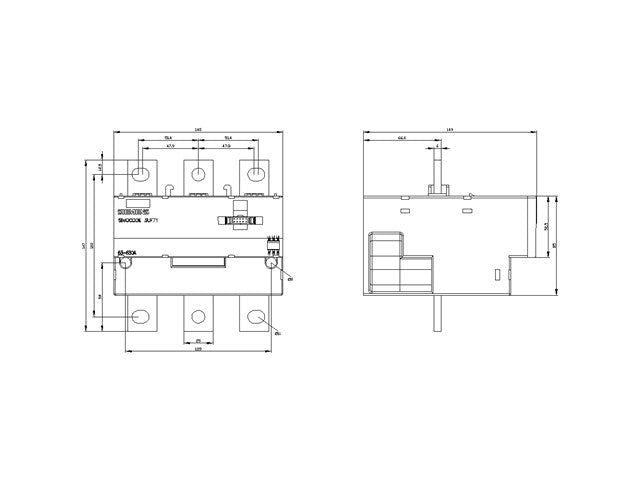

- Typical Dimensions: ~147 mm H × 145 mm W × 148 mm D
- Country of Origin: Germany (DE)
- Standards / Certifications: UL, CSA, CCC, EAC (varies by seller)
Downloads
Additional Information
| Device | Measuring Module |
| Type | SIMOCODE | Current | Measuring | Module |
