Product Details

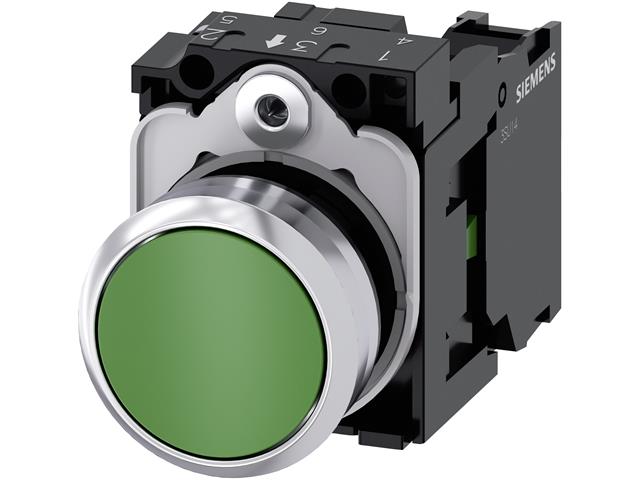

SIRIUS ACT Pushbutton, 22mm, Round, Metal, Shiny, Green, Pushbutton, Flat, Momentary Contact Type, 1 NO, Screw Terminal
SIRIUS ACT Pushbutton
Specifications
- Manufacturer: Siemens
- Series: SIRIUS ACT (3SU11)
- Product Type: Pushbutton complete unit
- Model Number: 3SU1150-0AB40-1BA0
- Product Family: Actuators and indicators, 22 mm metal type
Function & Operation
- Momentary pushbutton (spring-return operation)
- Designed for industrial control and signaling applications
- Non-illuminated pushbutton
- Suitable for panel-mounted operator stations
Actuator Details
- Mounting Diameter: 22 mm
- Actuator Type: Flat pushbutton
- Actuator Shape: Round
- Actuator Color: Green
- Material (Front Ring): Metal, high-gloss
- Outer Diameter: ~29.45 mm
Electrical Specifications
- Contact Configuration: 1 NO (Normally Open)
- Switch Function: Off-Momentary
- Rated Voltage: Up to 500 V AC/DC
- Rated Current: Up to 10 A
- Rated Insulation Voltage: 500 V
- Surge Withstand Voltage: 6 kV
- Connection Type: Screw terminals
Mechanical Specifications
- Mounting Type: Panel mount
- Protection Rating (Front): IP66 / IP67 / IP69K
- Terminal Protection: IP20
- Number of Contact Modules: 1
- Net Weight: ~0.09 kg
Operating Conditions
- Operating Temperature Range: −25°C to +70°C
- Pollution Degree: 3
Standards & Approvals
- Approvals: CE, cULus, CCC
- Product Lifecycle: Active product
Key Notes
- This unit is a 22 mm round green momentary pushbutton with 1 NO contact, supplied as a complete device with actuator, holder, and contact block.
- It belongs to the SIRIUS ACT modular pushbutton range, designed for harsh industrial environments with high ingress protection ratings.
Downloads
Additional Information
| Device | Pushbutton |
| Type | SIRIUS | ACT | Pushbutton |
