Product Details

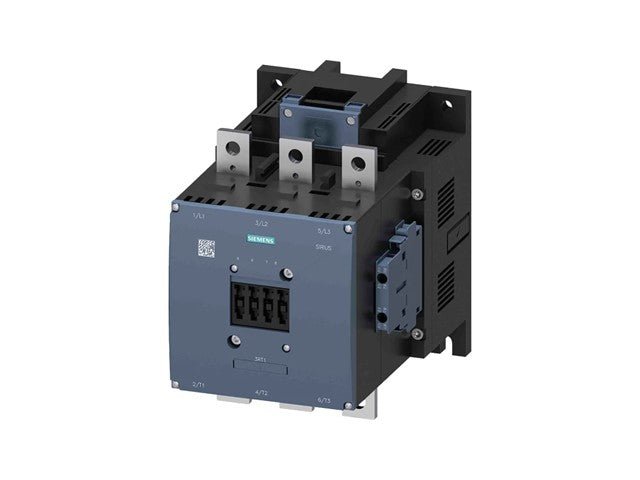

Power Contactor AC-1 690 A / 690 V / 40 °C 3-Pole, Uc: 220-240 V AC(50-60 Hz) / DC Drive: Conventional Auxiliary Contacts 2 NO + 2 NC Main Circuit: Busbar Control and Auxiliary Circuit: Screw Terminal
Specifications
| Coil Voltage | 220, 240V ac/dc |
| Product Type | Contactor |
| Number of Poles | 3 |
| Contact Voltage | 690V |
| Contact Current | 690A |
| Series | 3RT1 |
| Function | Reversing |
| Mount Type | Screw |
| Normal State Configuration | 2 NO/2 NC |
| Number of Auxiliary Contacts | 4 |
| Auxiliary Contact Configuration | 2 NO/2 NC |
| Terminal Type | Screw Clamp |
| Minimum Operating Temperature | -25°C |
| Operational Current Ie | 170A |
| Control Circuit Voltage Uc | 240V ac/dc |
| Contactor Application | Safety |
| Maximum Operating Temperature | 60°C |
| Standards/Approvals | UL, EAC, CSA, CCC |
| Width | 160mm |
| Depth | 225mm |
| Length | 214mm |
| Pole and Throw Configuration | 3 |
