Product Details

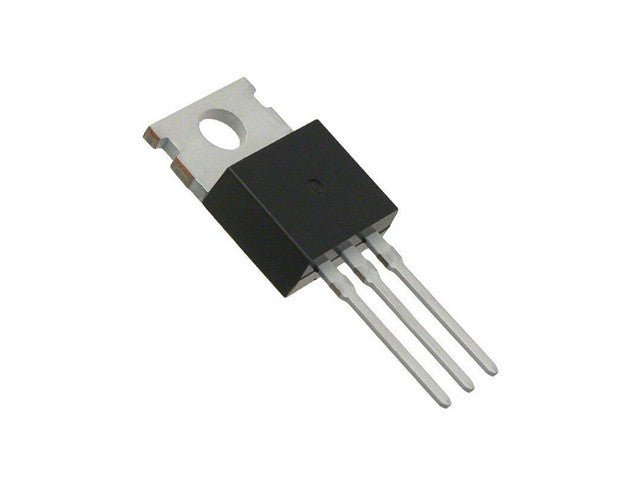

Silicon PNP Power Transistor
Silicon PNP Power Transistor
Specifications
- Type: PNP
- Collector-Emitter Voltage, max: -60 V
- Collector-Base Voltage, max: -60 V
- Emitter-Base Voltage, max: -5 V
- Collector Current − Continuous, max: -4 A
- Collector Dissipation: 40 W
- DC Current Gain (hfe): 40 to 250
- Transition Frequency, min: 30 MHz
- Operating and Storage Junction Temperature Range: -55 to +150 °C
- Package: TO-220F
Additional Information
| Device | Transistor |
