Product Details

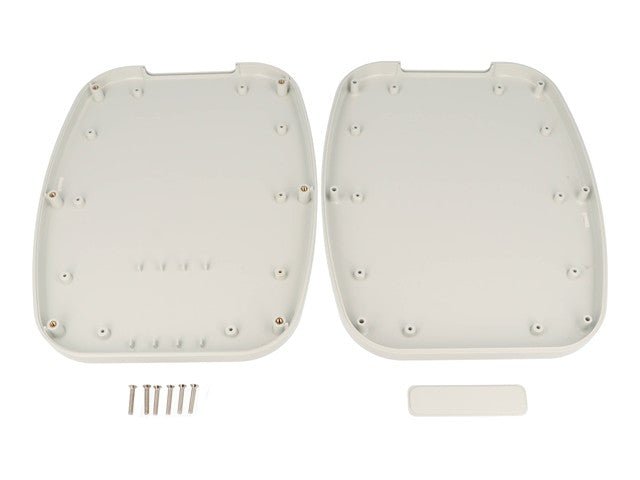

Enclosure Tablet Case ABS Grey Handheld Split Sides and End Panels 240 x 190 x 30 mm IP54 Flame Retardent
Features
- Attractively styled and ergonomically designed for use as a “hand-held” instrument enclosure
- Standard version is molded from flame retardant ABS plastic (rated UL94V-0) and is assembled with machine screws into integral brass bushings
- Recessed top for membrane display or pad
- Extra deep top and ultra shallow base are specifically designed to enhance the aesthetics of the enclosure and provide the user with flexibility and assembly efficiency
- Designed to meet IP54
- Two keyhole knockouts are molded into the inside of the base to facilitate wall mounting installation.
Specifications
| Product Type | Tablet Enclosure |
|---|---|
| Series | 1599 |
| Body Material | ABS Plastic |
| External Dimensions | 240 x 190 x 30 mm |
| External Length | 240 mm |
| External Width | 190 mm |
| External Height | 30 mm |
| Internal Dimensions | 229.78 x 179.78 x 23.25 mm |
| Internal Length | 229.78 mm |
| Internal Width | 179.78 mm |
| Internal Height | 23.25 mm |
| Colour | Grey |
| IP Rating | IP54 |
| Lid Colour | Grey |
| Flame Rating | UL94 V-0 |
| Number of Knockouts | 2 |
| Protection Features | Dust and Splashing Water |
