Product Details

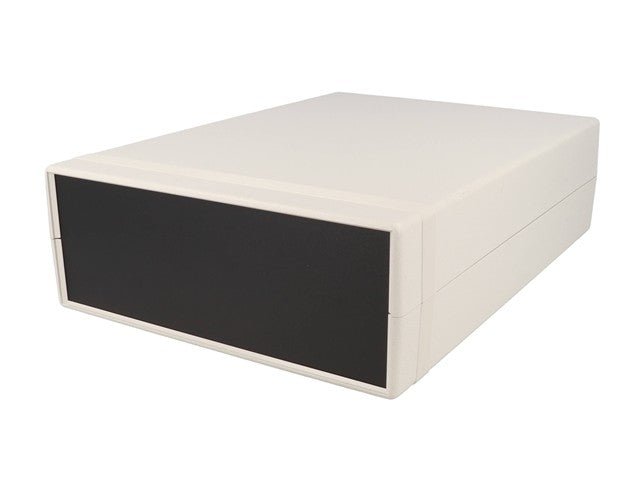

Instrument Enclosure • Polystyrene Plastic • with Black Plastic end Panels • 280x200x76mm • Grey enclosure Black Panel
Feature(s)
- Desk top electronic instrument enclosure, ideally suited for mounting printed circuit boards.
- Molded from flame retardant ABS plastic (material carries a UL flammability rating of 94V-0).
- Designed to meet IP54.

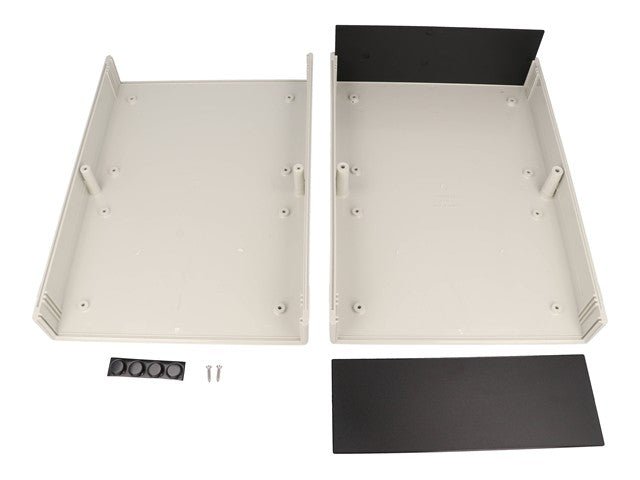

- Two sets of vertical 1.5 mm (0.062”) P.C. board guides are molded into case halves front and rear.
- Front and rear panels are 1.6 mm (0.064”) brushed aluminum with protective paper on one side.
- Enclosure halves are secured with M3 x 0.5” x 10 mm (0.39”) Phillips machine screws threaded into tapped integral brass bushings. Perfect for applications with repetitive assembly and disassembly are required.
- Integral horizontal P.C. card mounts on Eurocard centers.
Downloads
Additional Information
| Sub Group | Instrument |
| Group | Plastic Enclosure |
| Model | 1598JSGYPBK |
| Device | Instrument |
| Body Material | Polystyrene Plastic |
| Size | 280mm x 200mm x 76mm |
| Base Colour | Black Plastic end Panels |
| Degree of Protection | IP54 |
