Product Details

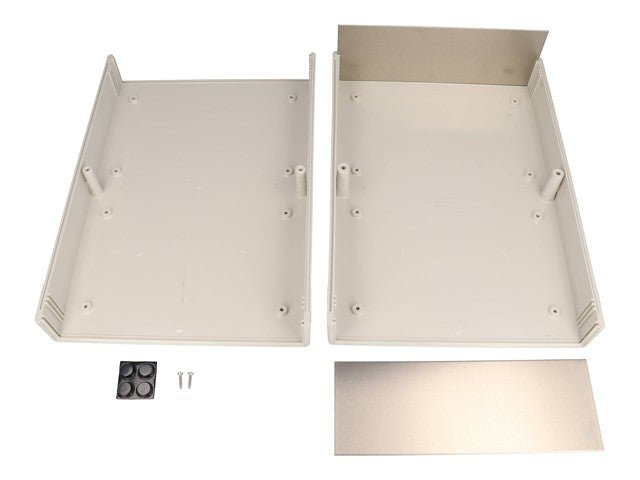

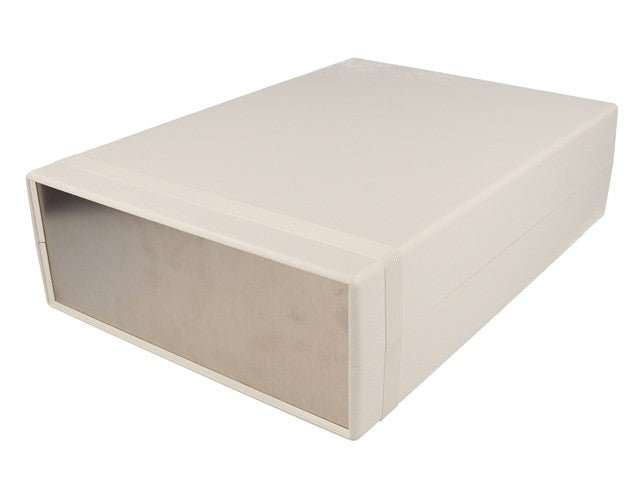

Instrument Enclosure • Polystyrene Plastic • with Aluminium End Panels • 280.1 x 199.5 x 75.8 mm • Grey enclosure Metal Panel
Features
- Desktop electronic instrument enclosure, ideally suited for mounting printed circuit boards
- Designed to meet IP54
- Two sets of vertical 1.5 mm (0.062") P.C. Board guides are molded into case halves front and rear
- Front and rear panels are 1.6 mm (0.064") brushed aluminium with protective paper on one side
- Enclosure halves are secured with m3 x 0.5" x 10 mm (0.39") phillips machine screws threaded into tapped integral brass bushings. Perfect for applications with repetitive assembly and disassembly are required
- Integral horizontal P.C. Card mounts on eurocard centers
Specifications
| Product Type | Instrument Enclosure |
|---|---|
| Series | 1598 |
| Body Material | Polystyrene Plastic |
| External Dimensions | 280.1 x 199.5 x 75.8 mm |
| External Length | 280.1 mm |
| External Width | 199.5 mm |
| External Height | 75.8 mm |
| Internal Dimensions | 269.6 x 189.64 x 68 mm |
| Internal Length | 269.6 mm |
| Internal Width | 189.64 mm |
| Internal Height | 68 mm |
| Colour | Grey |
| IP Rating | IP54 |
| Lid Colour | Grey |
| Flame Rating | UL94-HB |
