Product Details

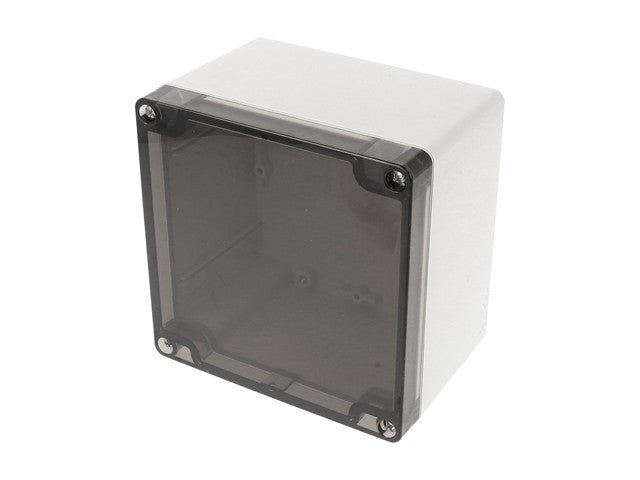

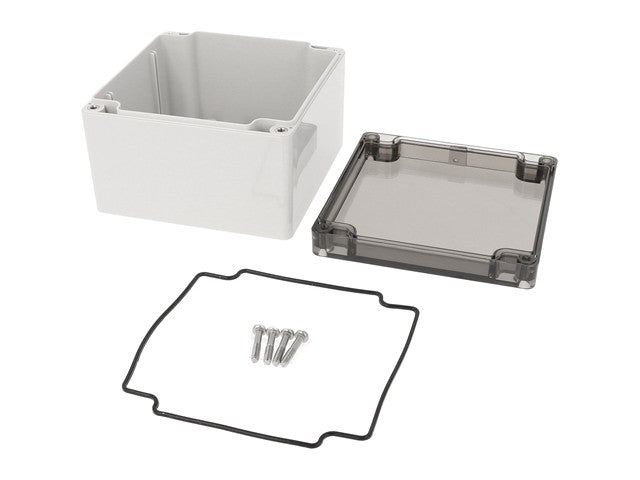

Enclosure Polycarbonate 120x120x90mm IP66 Grey Body Smoked Lid
Polycarbonate IP66 Grey Body Smoked Lid Enclosure
Specifications
- Part Number: 1554P2GYSL
- Series: Type 4X, 6P Polycarbonate & General Purpose ABS Enclosures (1554 Series)
- Short Description: 120X120X90MM P/C NEMA SMK LID
- Long Description: RAL7035 grey polycarb plastic watertight enclosure, smoked lid
- Size L x W x H: 4.7 in x 4.7 in x 3.5 in (119 mm x 119 mm x 89 mm)
- Shipping Weight: 0.6 lbs (0.27 kg)
- UNSPSC: 39121301
- UPC: 623980132570
- UL File #: E65324
- REACH Compliant: Yes
- RoHS Compliant: Yes
- Packaging Type: shrink wrap
- Material: Polycarbonate
- Color: Light Gray
- Flame Rating: UL94 V-0
- IP Rating: IP68
- Product Category: Enclosures
- Type: Water-tight
- NEMA Rating: 4, 4X, 6, 6P, 12 & 13
- P.C. Board Length (mm): 106.68
- P.C. Board Width (mm): 107.7
Downloads
Additional Information
| Device | Enclosure |
| Type | Polycarbonate | IP66 | Grey | Smoked Lid |
| Size | 120m x 120m x 90mm |
| Base Colour | Grey |
| Cover Colour | Smoked Lid |
| Degree of Protection | IP66 |
