Product Details
Polycarb Enclosure 65x65x40mm Grey Body Clear Lid IP66
Feature(s)
- Ideally suited for mounting printed circuit boards or DIN rail mounted components
- Clear polycarbonate lid allows for maximum visability of protected internal components
- Material - Polycarbonate (material carries a UL flammability rating of UL94 5V) - Recommended for outdoor use
- Color is a light gray (RAL 7035)

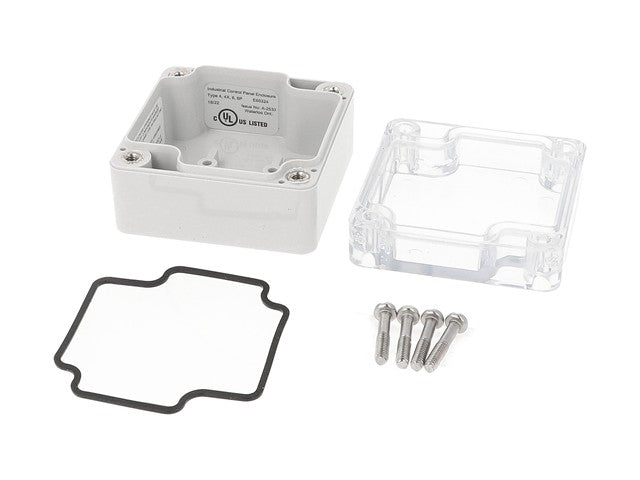

- Gasketed lid with two piece "tongue & groove" construction provides protection against access of oil, dust and water
- Gasket is factory poured using high temperature U.L. listed - silicone rubber gasket material
- Designed to meet IP 66 & NEMA 4, 4X, 12 & 13 ratings
- Lid is secured with self captivating - M4 stainless steel machine screws (included), threaded into integral stainless steel bushings (for repetitive assembly & disassembly)
- All stainless steel hardware to avoid corrosion caused by dissimilar metals
- Lid screws are self captivating (lid holes are threaded with the first installation of lid screws)
- Internal features are maximized for mounting options: Internal DIN rail mounting tabs - molded in -
- Options vary with size. Threaded (M3) integral brass inserts and/or standoffs (#6 self tapping screws) for P.C. board or inner panel mounting in all but the smallest size
- Vertical P.C. card guides (for 1.5 mm thick P.C. boards) are molded in all but the smallest size enclosure

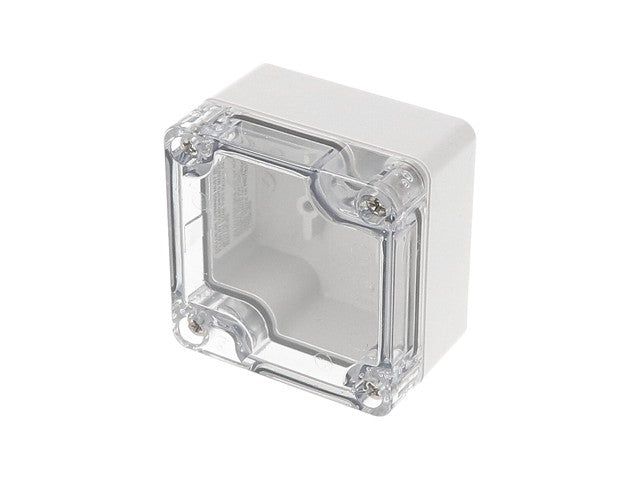

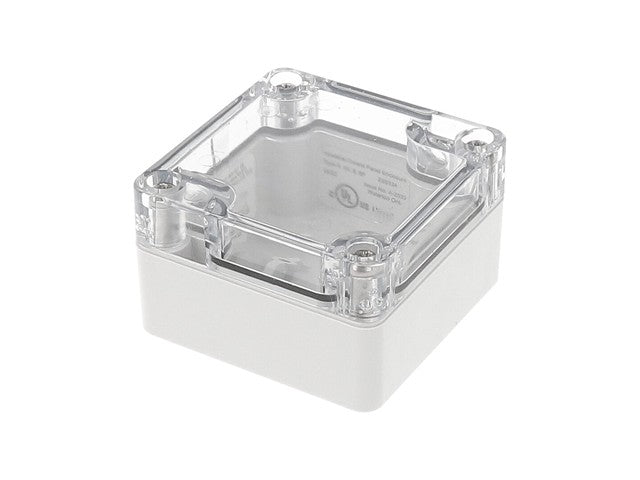

- Clear Lid
- Clear Lid
Downloads
Additional Information
| Sub Group | Heavy Duty |
| Group | Plastic Enclosure |
| Model | 1554B2GYCL |
| Device | Heavy Duty |
| Body Material | Polycarbonate |
| Size | 65mm x 65mm x 40mm |
| Base Colour | Grey |
