Product Details

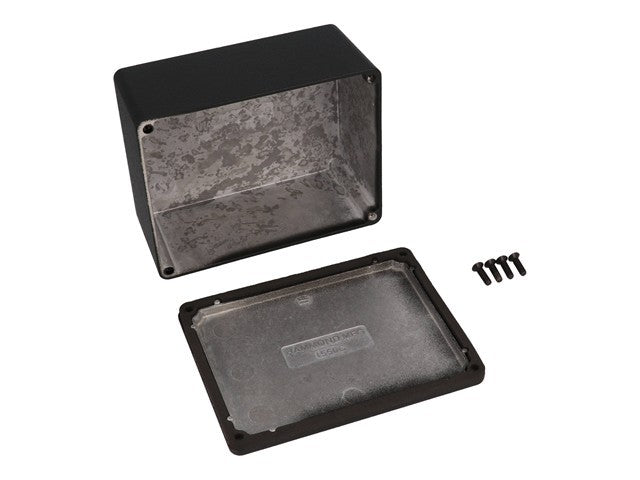

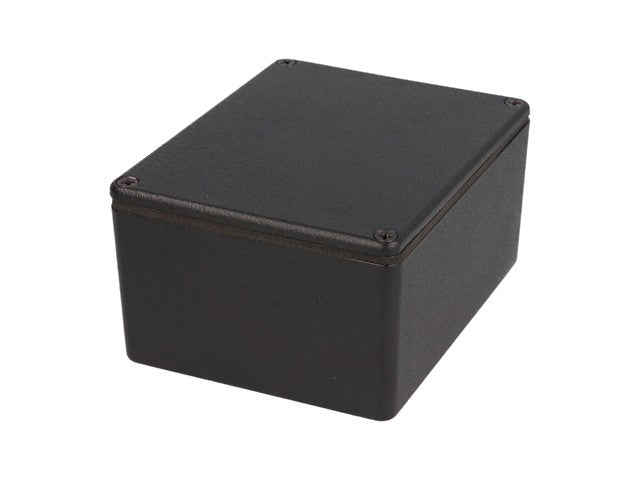

Diecast Aluminium Enclosure Black 115 x 90 x 51mm Liquid Resistant IP66
Diecast Aluminium Enclosure Liquid Resistant IP66
Feature(s)
- Rugged, diecast aluminum alloy (tough yet easy to machine), electronic instrument enclosure
- Available in natural vibra finish OR in light textured, black powder paint
- Unpainted version is vibra finished for a smooth surface with no sharp edges
- Painted version is painted with tough satin black polyester powder paint for a lasting finish, even after machining. Black screws are included to enhance the assembled appearance
- Lap joint construction protection against access of dust and splashing water. Also provides for improved EMI/RFI shielding. When water-tight gaskets are installed
- Four M3.5 x 0.6 x 12 mm long stainless steel, Philips head, machine screws secure lid - into factory tapped holes
- Designed to meet IP 54 without a gasket or IP66 with a gasket. IP67 upgraded gaskets are available
- No internal ribs for easy installation of connectors without interference or additional milling
- Low side wall draft angle (2 degrees or less) for easy P.C. board mounting
Specifications
| Size L x W x H | 4.53 in x 3.54 in x 2.01 in (115 mm x 90 mm x 51 mm) |
|---|---|
| Shipping Weight | 0.49 lbs (0.22 kg) |
| Packaging Type | shrink wrap |
| Material | Aluminum (Die-Cast Alloy) |
| Color | Black |
| IP Rating | IP66 |
| Product Category | Enclosures |
| Type | Die-cast box, water-tight |
Downloads
Additional Information
| Device | Enclosure |
| Type | Diecast | Aluminium | Black | Liquid Resistant | IP66 |
