Product Details

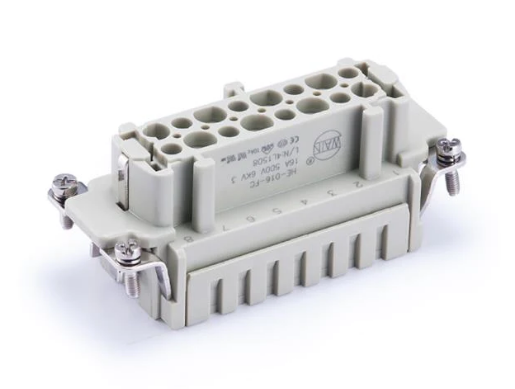

Han E 16-Pole Female Crimp Insert for Heavy-Duty Power Connections
Ensure reliable power transmission with this robust Han E series insert. Featuring 16 positions plus PE, a 16 A current rating, and a 500 V voltage rating, this female insert is designed for crimp termination of wires ranging from 20 to 12 AWG (26 to 12 AWG minimum/maximum). Order contacts separately to customize your heavy-duty connector within a size 16B housing.
SPECIFICATIONS
| Inserts | |
| Number of contacts | 16+PE |
| Electrical data acc. to DIN EN 61 984 | |
| ---Rated current | 16A |
| ---Rated voltage | 500V |
| ---Rated impulse voltage | 6kV |
| ---Pollution degree | 3 |
| ---Pollution degree 2 also | 16A 400/690V 6kV 2 |
| Rated voltage acc. to UL/CSA | 600V |
| Insulation resistance | ≥1010Ω |
| Material | polycarbonate |
| Limiting temperatures | -40℃...+125℃ |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Contacts | |
| Material | copper alloy |
| Surface | hard-gold plated |
| hard-silver plated | |
| Contact resistance | ≤1mΩ |
| Crimp terminal | |
| ---Wrie gauge | 0.14-4.0mm² |
| ---AWG | 26-12 |
| ---Stripping length | 7.5mm |
ACCESSORIES
Please Click here to view list of Accessories for Size 16B
