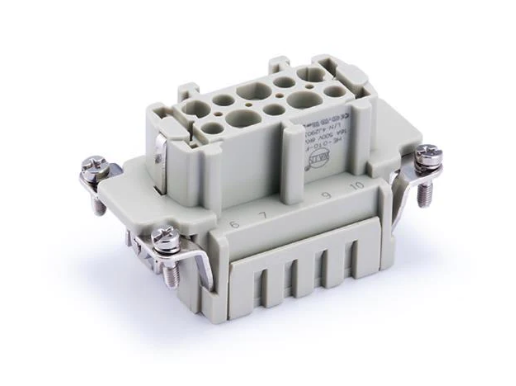

Heavy-Duty 10-Position Female Power Connector - Han E Series
Ensure reliable and robust power connections with the Han E 10-position female insert. Part of the renowned Han series of heavy-duty power connectors, this insert is specifically designed for demanding industrial environments requiring secure and high-performance connections.
This female insert features 10 power contacts plus a Protective Earth (PE) connection, capable of handling a current rating of 16 A and a voltage rating of 500 V. The robust crimp termination style ensures a vibration-resistant and gas-tight connection, crucial for long-term reliability in harsh conditions.
Designed to fit within a size 10B housing/hood, this insert boasts a durable Polycarbonate (PC) housing material, offering excellent electrical insulation and mechanical strength. It accommodates a wide range of wire sizes, from 20 AWG up to 12 AWG, providing flexibility for various application requirements.
SPECIFICATIONS
| Inserts | |
| Number of contacts | 10+PE |
| Electrical data acc. to DIN EN 61 984 | |
| ---Rated current | 16A |
| ---Rated voltage | 500V |
| ---Rated impulse voltage | 6kV |
| ---Pollution degree | 3 |
| ---Pollution degree 2 also | 16A 400/690V 6kV 2 |
| Rated voltage acc. to UL/CSA | 600V |
| Insulation resistance | ≥1010Ω |
| Material | polycarbonate |
| Limiting temperatures | -40℃...+125℃ |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Contacts | |
| Material | copper alloy |
| Surface | hard-gold plated |
| hard-silver plated | |
| Contact resistance | ≤1mΩ |
| Crimp terminal | |
| ---Wrie gauge | 0.14-4.0mm² |
| ---AWG | 26-12 |
| ---Stripping length | 7.5mm |
