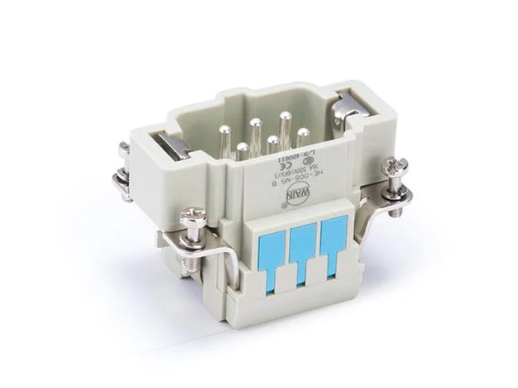

HAN ES 6P Male Heavy Duty Power Connector with Cage-Clamp Termination
HAN ES 6P Male Heavy Duty Power Connector with Cage-Clamp Termination
Regular price
Dhs. 36.71
Regular price
Sale price
Dhs. 36.71
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
HAN ES 6P Male Heavy Duty Power Connector with Cage-Clamp Termination
Reliable power connection is ensured with the HAN ES series 6-position (plus PE) male insert. Designed for demanding applications, this insert features robust cage-clamp termination for secure wiring of 26 to 14 AWG. It supports a current rating of 16 A and a voltage rating of 500 V. Constructed from durable polycarbonate with silver-plated copper alloy contacts, this male insert fits size 6B housings.
Article No. 122 006 010 0101
Industry No. 09330062616
Size: 6B
Series: 6ES
SPECIFICATIONS
| Inserts | |
| Number of contacts | 6+PE |
| Electrical data acc. to DIN EN 61 984 | |
| ---Rated current | 16A |
| ---Rated voltage | 500V |
| ---Rated impulse voltage | 6kV |
| ---Pollution degree | 3 |
| ---Pollution degree 2 also | 16A 400/690V 6kV 2 |
| Rated voltage acc. to UL/CSA | 600V |
| Insulation resistance | ≥1010Ω |
| Material | polycarbonate |
| Limiting temperatures | -40℃...+125℃ |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Contacts | |
| Material | copper alloy |
| Surface | hard-gold plated |
| hard-silver plated | |
| Contact resistance | ≤1mΩ |
| Spring terminal | |
| ---Wrie gauge | 0.14-2.5mm² |
| ---AWG | 26-14 |
| ---Stripping length | 7-9mm |
ACCESSORIES
Please Click here to view list of Accessories for Size 6B
