Series 92EEE (C) Insert 46P+E - Size 48B - Female Enhanced Crimp Termination 16A/500V
Series 92EEE (C) Insert 46P+E - Size 48B - Female Enhanced Crimp Termination 16A/500V
Regular price
Dhs. 58.45
Regular price
Sale price
Dhs. 58.45
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

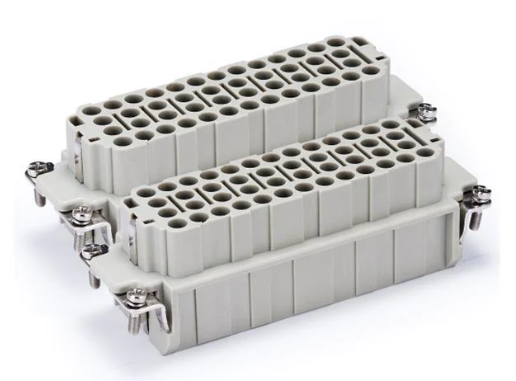

Series 92EEE (C) Insert 46P+E - Size 48B - Female Enhanced Crimp Termination 16A/500V -Numbered 47-92
Article No. 123 046 020 0102
Industry No. 09320463111
Size: 48B
Series: 92EEE (C)
SPECIFICATIONS
| Inserts | |
| Number of contacts | 92(2x46)+PE |
| Electrical data acc. to EN 61 984 | |
| ---Rated current | 16A |
| ---Rated voltage | 500V |
| ---Rated impulse voltage | 6kV |
| ---Pollution degree | 3 |
| ---Pollution degree 2 also | 16A 830V 8kV 2 |
| Rated voltage acc. to UL | 600V |
| Insulation resistance | ≥1010Ω |
| Material | polycarbonate |
| Limiting temperatures | -40℃...+125℃ |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Contacts | |
| Material | copper alloy |
| Surface | hard-gold plated |
| hard-silver plated | |
| Contact resistance | ≤1mΩ |
| Crimp terminal | |
| ---Wrie gauge | 0.14-4.0mm2 |
| ---AWG | 26-12 |
| ---Stripping length | 7.5mm |
ACCESSORIES
Please Click here to view list of Accessories for size 48B
