Product Details
19 Way Male Cable Connector With IP40 60V 3A Screw Locking And Solder Termination cable outlet 6~7.8MM

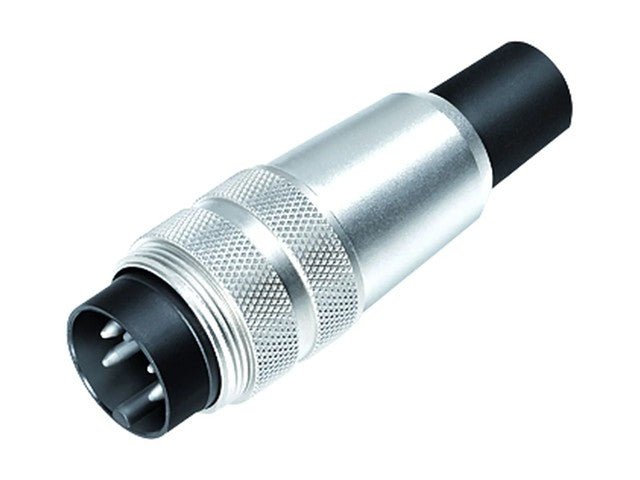

09-0343-02-19 Male Cable Connector
Downloads
Additional Information
| Group | Miniature Circular Connector |
| Device | Cable Connector |
| Type | Cylindrical | Circular | Miniature |
| Highlights | Gold Plated Contacts |
| Gender | Male |
| No. of Contacts | 19 |
| No. of Pins | 19 |
| Series | 680 |
| Locking System | Screw Locking |
| Termination | Solder |
| Size | M16 |
| Cable | cable outlet 6~7.8mm |
| Electrical Rating | 60V 3A |
| Wire Range | 24 AWG 0.25mmsq |
| Degree of Protection | IP40 |
