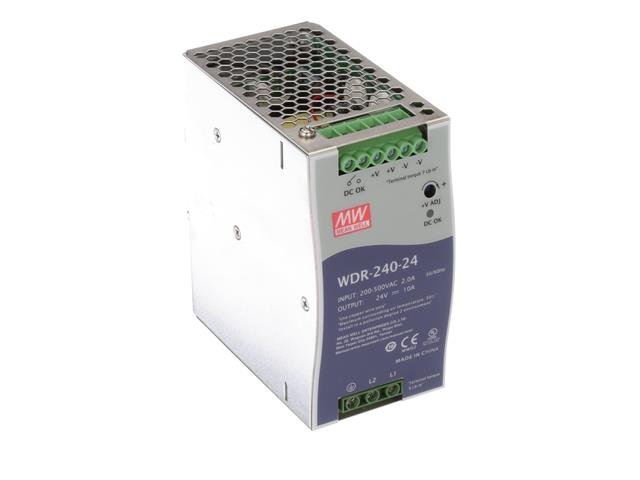

METAL CASE SWITCH MODE POWER SUPPLY

FEATURE

• 120 W to 480 W
• Slim design and 180 V ac to 550 V ac wide input range (Single and two phase)
• 100% full load burn-in test
• Assemble on industrial rail TS-35/7.5 or 15
• Built-in DC OK relay contact
• Protections: Short circuit/Overload/Over voltage/Over temperature
• Cooling by free air convection
• UL 508 (industrial control equipment) approved
• EN61000-6-2 (EN50082-2) industrial immunity level
• 3 year warranty

SPECIFICATIONS

• AC or DC Input Voltage : AC
• AC or DC Output Voltage : DC
• Input Voltage : 180 → 550V ac
• Output Voltage : 24V DC
• Output Current : 10A
• Power Rating : 240W
• Number of Outputs : 1
• Electrical Phase : 1,2
• Height : 125mm
• Width : 63mm
• Depth : 114mm
• Output Voltage Adjustment Range : 24 → 28V
• Series : MDR
• MTBF : 141.1kh
• Mounting Type : DIN Rail Mount
• Standards Met : RoHS Compliant, TUV EN 60950-1, UL 508
• Minimum Temperature : -30°C
• Load Regulation : ±1%
• Maximum Temperature : +70°C
• Ripple And Noise : 150mV Pk-Pk
• Special Features :     Overvoltage and Short Circuit Protection
