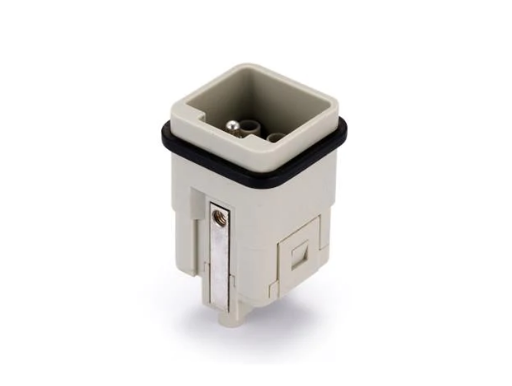

7-Pin + Earth Male Crimp Connector, 10A/400V, Size 3A
The male crimp termination insert is engineered for demanding industrial applications requiring reliable 10A/400V connections. Featuring a Series Q7/0 (C) insert with 7 power pins plus earth (7P+E) configuration, it ensures secure and efficient power transmission. Designed to fit Size 3A connector housings, this insert is ideal for control systems, machinery, and other heavy-duty electrical connections. The crimp termination design allows for quick and secure wiring, minimizing installation time and ensuring long-lasting performance.
Article No. 130 007 020 0001
Industry No. 09120073001
Size: 3A
Series: Q7/0 (C)
Datasheet HQ-007/0-MC
SPECIFICATIONS
| Ferrule | |
| Connector pin count | 7+PE |
| Electrical data according to DIN EN 61984 | |
| -Rated current | 10A |
| - rated voltage | 400V |
| - Rated impulse voltage | 6KV |
| - pollution level | 3 |
| Voltage rating according to UL/CSA | 600V |
| Insulation resistance | ≥1010Ω |
| Material | polycarbonate |
| range of working temperature | -40℃...+125℃ |
| Flame retardant grade (UL94) | V0 |
| Pluggable times | ≥500 |
| pin | |
| Material | copper alloy |
| surface treatment | silver plated gold plated |
| Contact resistance | ≤3mΩ |
| cold press connection | |
| ---mm2 | 0.14-2.5mm2 |
| ---AWG | 26-14 |
| PE screw connection | |
| ---mm2 | 2.5mm2 |
| ---AWG | 14 |
